ZA5.3 MTM from the Zaph|Audio ZA5 Family
Price shown is for a PAIR
This is the MTM offering from the ZA5 family of kits. There are two woofers and one tweeter in a D'Appolito configuration in each speaker.This design also has a crossover variation for In-Wall use which you can select from the drop down menu.
The Zaph Audio ZA5 Family is a collection of speaker kits using the ZA14W08 woofer and the Vifa DQ25SC16-04 tweeter. These drivers and subsequent kits represent fantastic performance at a very attractive price. Detailed information on the Zaph ZA14W08 woofer and ZA5 kits can be found on the Zaph Audio website.
There are several designs to choose from to meet your speaker building goals. Consider the ZA5 kits for anything from small monitors to floor standing towers, from stand mounted MTM stereo to a complete surround sound masterpiece. The variety of kits in the ZA5 family affords you the choices to specifically fit your project needs.
Madisound is offering these kits as a combination of the ZA14W08 woofers and DQ25SC16-04 tweeters along with the associated crossovers. These high quality crossovers come professionally assembled on a printed circuit board for easy installation and hookup. All crossover parts hold to the exact values of the crossover design.
You may also choose to purchase your choice of optional accessories packages. These accessories packages are available at a discounted price, and will provide you with the miscellaneous speaker building parts that you need to complete your kit. Detailed parts list can be found below.
In response to customer feedback, binding posts/input cups are not included in the accessories package. However, you may also select your choice of binding posts or input cups at a discounted price. Both the accessories package and binding post/input cup options can be purchased along with this kit by selecting from the drop down menus at the top of this page.

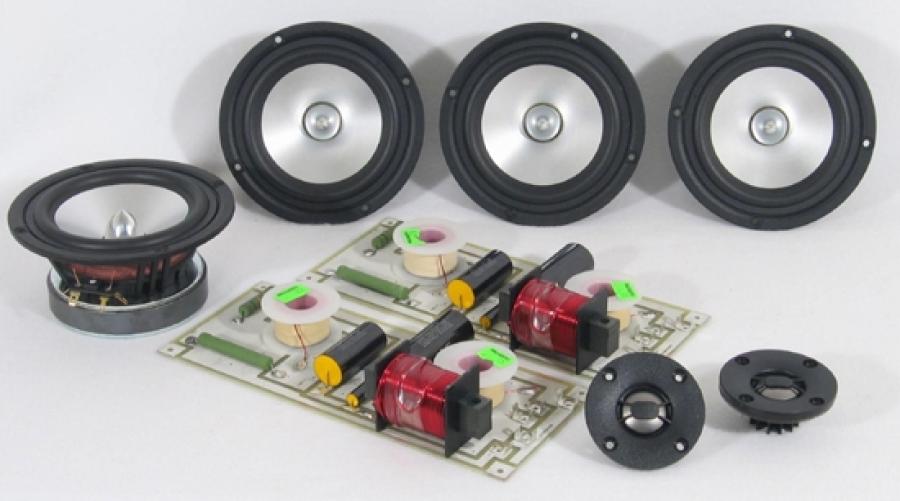

Included:
- (4) ZA14W08 Aluminum Cone Midbass Woofers
- (2) DQ25SC16-04 Titanium Dome Tweeters
- (2) Professionally Assembled Crossovers - for schematic click here.

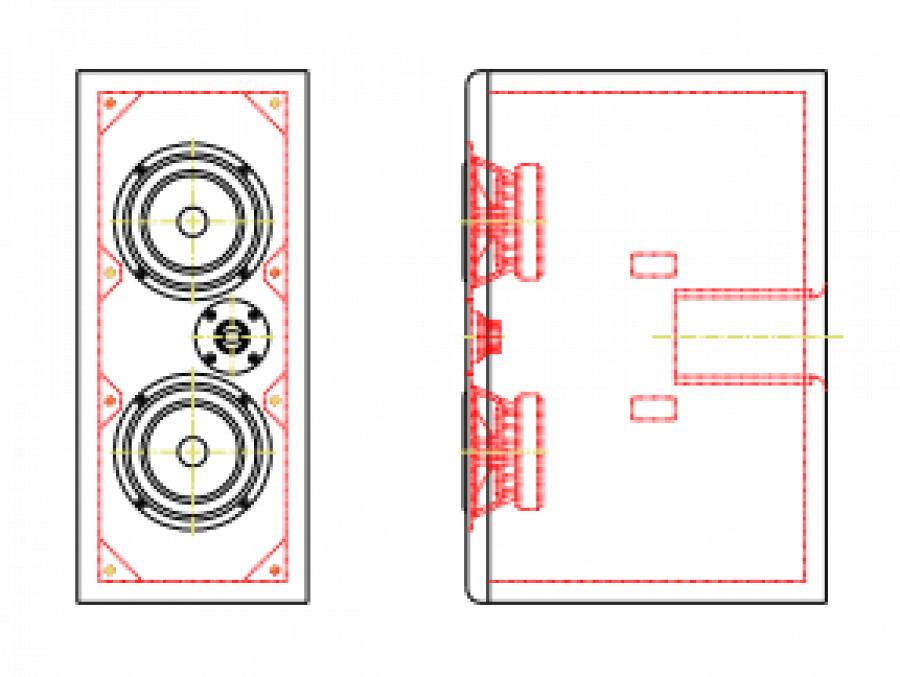

Enclosure Information:
- .70 cubic feet (20 liters)
- 8" wide, 18.5" tall, and 12" deep
- Rear ported
- Frequency response 52Hz – 20Khz
- For cabinet drawing click here.
Optional Accessories Package:
Crossover Options (select from drop down menu above):
- Original Crossover Design
- In-Wall Version of Crossover
- Upgrade Series Tweeter Capacitor
- Crossovers Only - No Drivers
Kit pricing shown includes a discount on all drivers and accessories package.
Need a single speaker or an odd number?
No problem, singles are simply 1/2 the price of the stereo pair.
Please leave us a note with your request in the "comments" section of your order.
We will ship your order with the total number of speakers that you request, and charge accordingly.
